150ml white powder metal Hvac Scent Delivery System with lock and wall mounted

Brief Instruction:

Air Aroma Machina

The Aroma diffusion systems is a professional standalone scent dispersing systems for mid-size areas .Nearly any scent can be diffused using the Micro- Nebulization process .The pure fragrance or flavor is diffused without being heated .in order to avoid any negative impact one the complexity and quality of the scent .The system transfers the fragrance /flavor from liquid gas within the unit .There’s no risk contamination .
-Complete transfer of liquid into scented air within the system dry scenting
* No heating
* No mist
* Perfectly controllable
* Low maintenance

Equipment maintenance
1. Carefully open the back cover of the machine with key, carefully remove the empty oil bottle
2. Pour some alcohol into the oil bottle, clean the bottle
3. Fill the bottle with some alcohol, put the bottle into the machine, run the equipment work for 5-10 minutes,
4. After cleaning, turn off the power.
5. Remove the oil bottle, refill with essence oil, load the bottle into the machine, shut the cover.
6. we suggest the maintenance be processed every month.

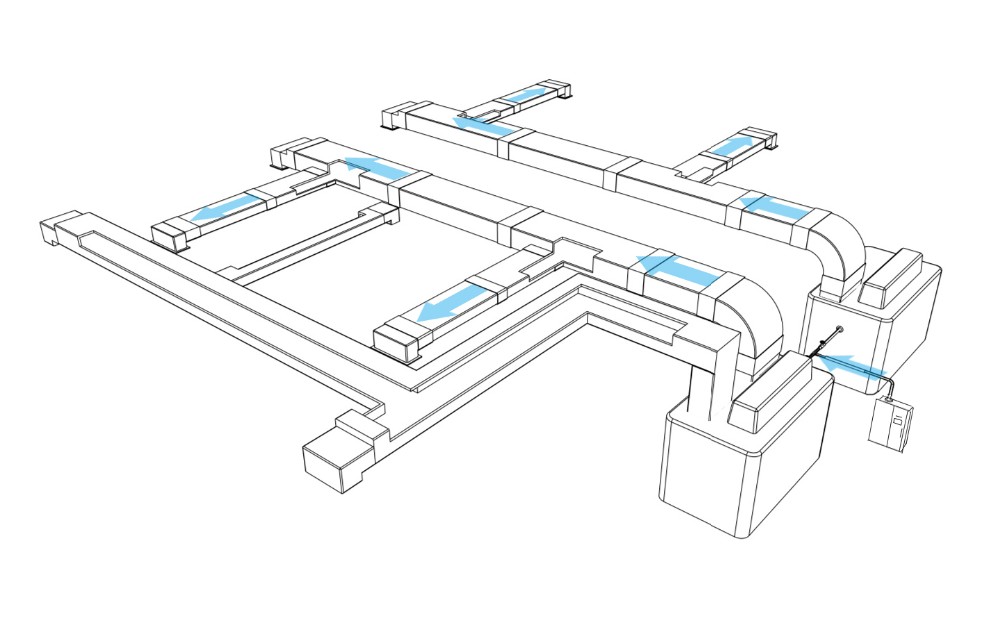

The Aroma diffusion systems is an HVAC by pass system which will be connected to an air duct of the air conditioning system .Due to micro- mobilization technology .The system delivers perfectly controlled scent impressions in the area of up to 100 sqm-(-1000 suqare ft) .The unit can be installed wherever needed .Replacement of cartridges depends on settings but usually necessary every3 to 6 weeks
After instantiation ,it only needs to be adjusted once and will need replacement of cartridges depending on the setting ,typically every 8 to 12 weeks .

Product Technical specifications:

Our Product Advantages:

1. Optionally connect to HVAC
2. Pre-fixed work-time range
3. Adjustable fragrance dispersing density setting
4. Easy to install essential oil container which is incorated inside the machine
5. LED panel
6. Micro computer system

Packing details:

Installation:

1. connect to HVAC, FAC you can place the unit in air conditioning room or put it on the ceiling

2. floor standing, this way doesn't need to place unit to ceiling and easy to replace the fragrance. but there will be a bit noisy for this way

APPLICATIONS:

Enhances the ambient atmosphere in shops, hotels, lobbies. clubs ,restaurants ,malls ,casinos , saps, supermarkets ,gyms
Maintenance and service
The Aoma diffusion systems requires minimal maintenance .Installation support is recommended .Service is recommended once year .Preventive maintenance every two years.
Warranty
1 year after installation .Usage of certified cartridges is mandatory.
